WeighComp Integration Status

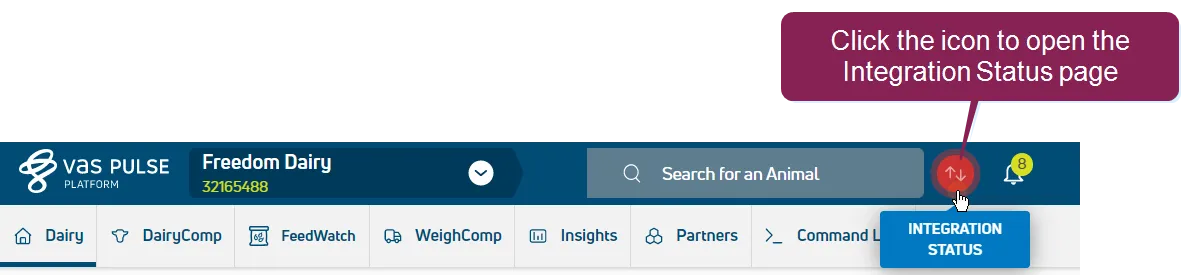

This icon is located at the top of the page, toward the right side of the screen. If the status icon is green, it indicates that data is currently synchronized for the default platform zone.

Click the Integration Status icon  to view the date and time that data was last synchronized between the PULSE and the WeighComp app. Click the small gray arrow buttons to view sync status for other zones

This icon is located at the top of the page, toward the right side of the screen. If the status icon is red, it indicates that data is not currently synchronized for the default platform zone.

Click the Integration Status icon to view the sync error date, time, and location. When the error has been corrected, the system displays the date and time that synchronization was restored. Click the small gray arrow buttons to view sync status for other zones.

If your data fails to sync within 24 hours, the PULSE displays an Integration Status Alert each time you access the dairy.

This is a critical error that requires immediate attention to ensure that all animal information, worklist details, and event data continue to sync correctly with the PULSE and mobile app. Proceed to Troubleshooting to address any errors.

Synchronization errors are defined as either Communication Status Errors or Last Data Sync Errors. See below for more information.

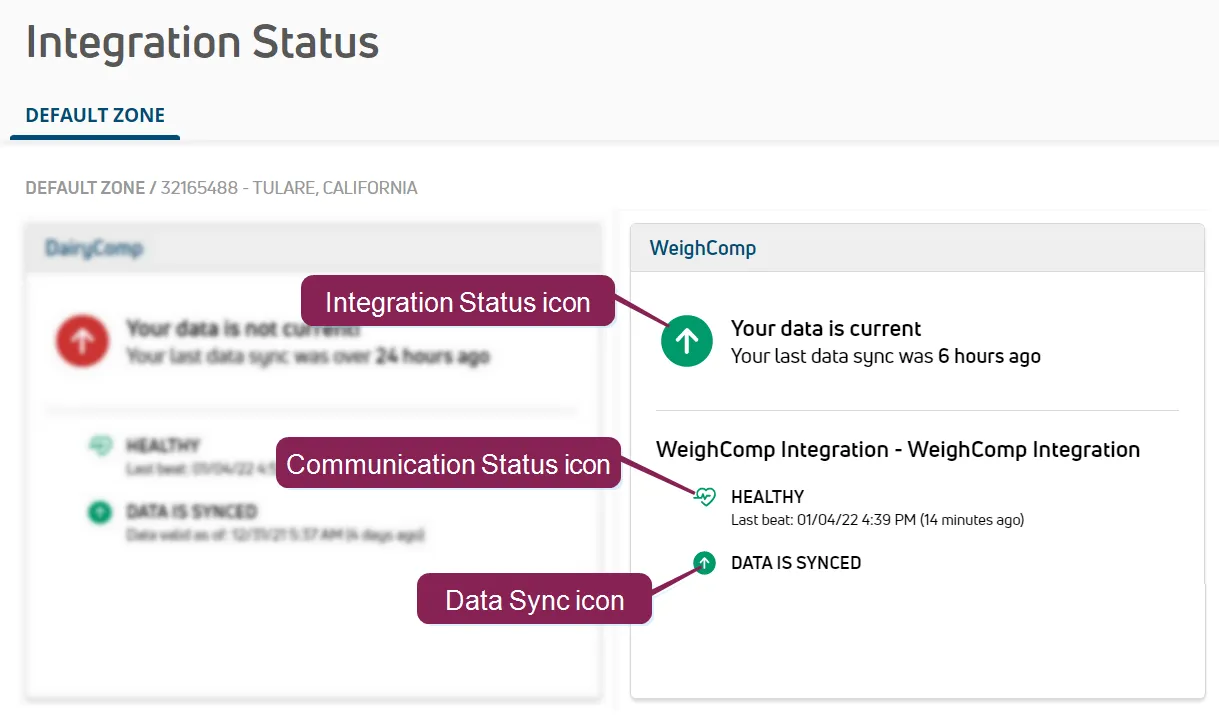

This icon can be found inside the Integration Status window, which can be opened by clicking the Integration Status icon at the top of the page. A green Communication Status icon indicates that the connection is healthy.

The system also displays the date/time of the last successful communication check (or check on the pulse "beat") between the PULSE and the WeighComp app. The PULSE is scheduled to check the communication status every 10 minutes.

This icon can be found inside the Integration Status window, which can be opened by clicking the Integration Status icon at the top of the page. A red Communication Status icon means that the connection (or "heartbeat") between the PULSE and the WeighComp app has broken down.

See Communication Status Errors to learn more.

This icon can be found inside the Integration Status window, which can be opened by clicking the Integration Status icon at the top of the page. A green Data Sync icon indicates that there is a healthy heartbeat between the PULSE and the WeighComp app, and the PULSE is able to import or process the data.

The system also displays the date/time of the last successful data sync between the PULSE and the WeighComp app.

This icon can be found inside the Integration Status window, which can be opened by clicking the Integration Status icon at the top of the page. A red Data Sync icon indicates that there is not a healthy heartbeat between PULSE and the WeighComp app, and PULSE is unable to import or process the data.

See Troubleshoot Communication and Data Sync Errors to learn more.

A sync error in Communication Status means that the connection (or "heartbeat") between PULSE and the WeighComp app has broken down.

The heartbeat essentially checks the pulse of the communication channel between the PULSE and the WeighComp app. If there is a disconnect along that communication channel, the PULSE is not able to receive data from the WeighComp app.
